DIY Tesla Coil Kit

DIY Tesla Coil Kit: A Spectacular Scientific Experience

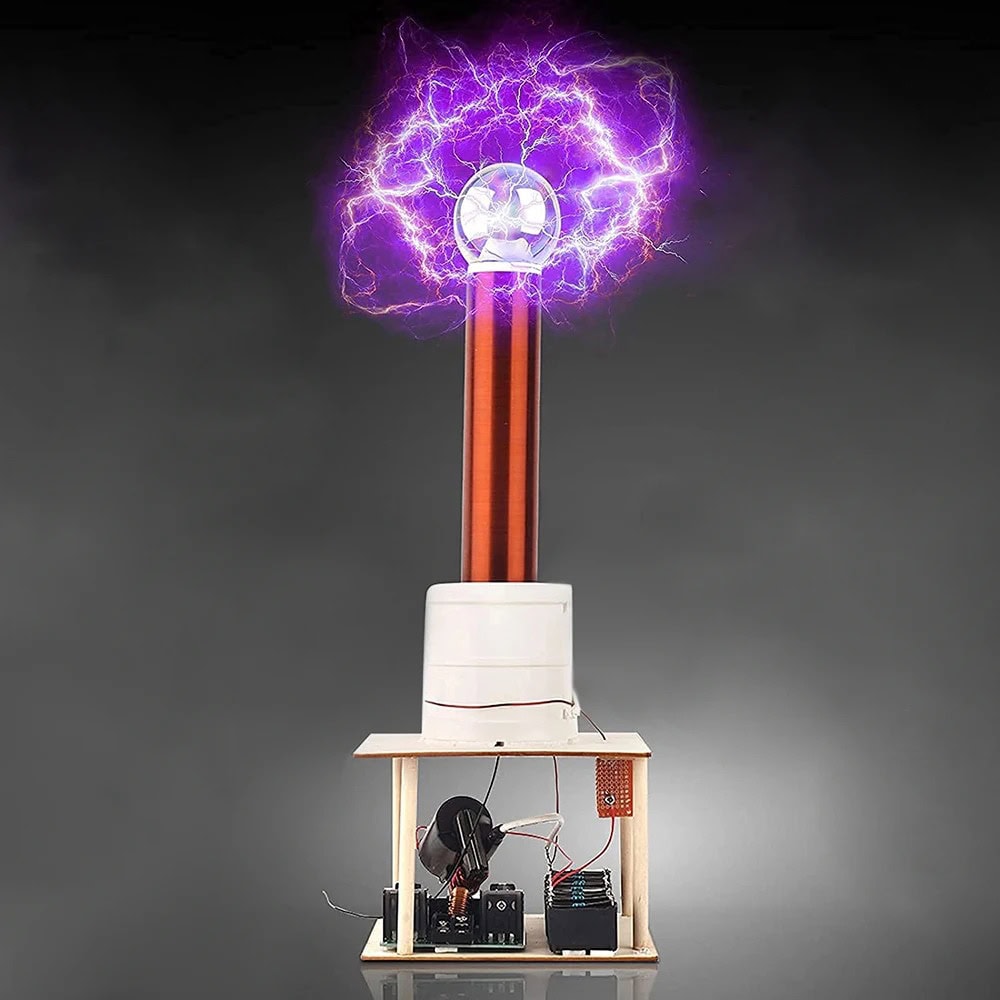

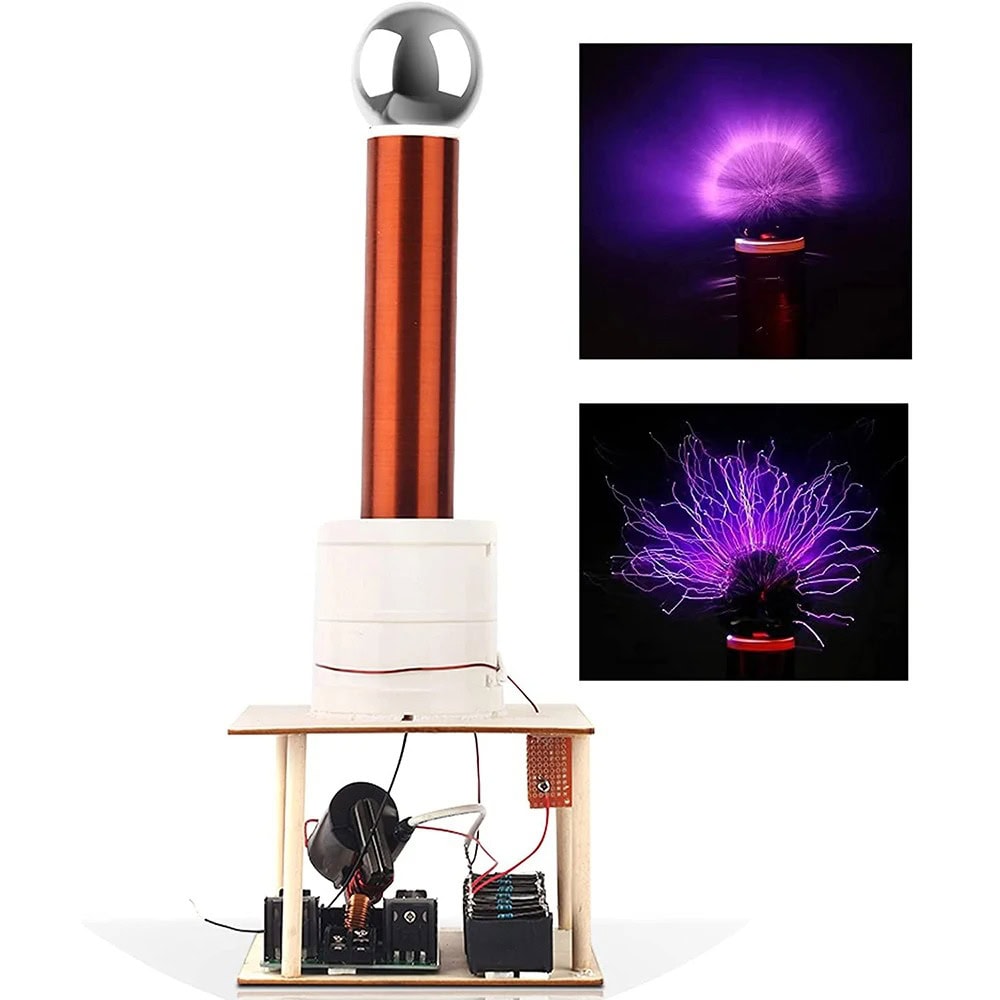

⚡ Impressive Electric Arc: generates a bright arc of approximately 4 Inch for a striking visual demonstration.

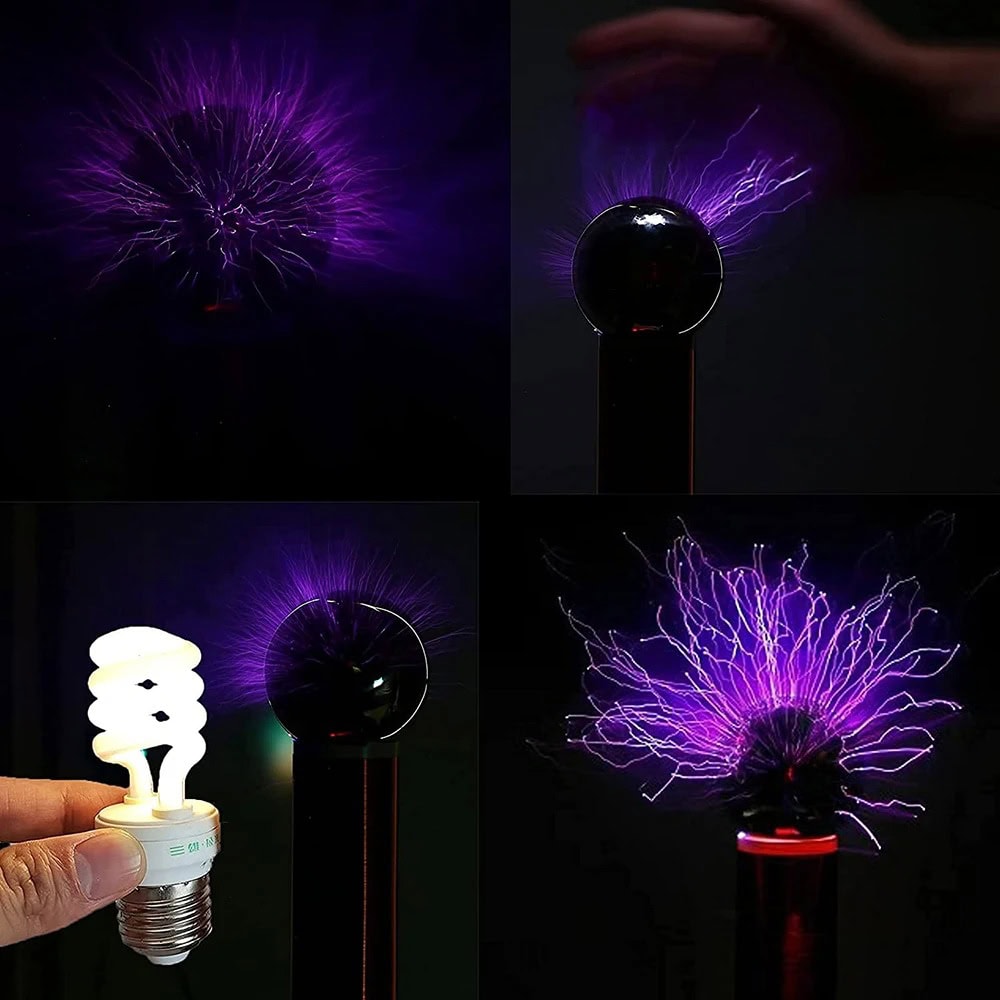

🔋 Wireless Transmission: capable of lighting a fluorescent lamp without a direct connection, illustrating the fundamental principles of electromagnetism.

🧰 True DIY Kit: designed for science, electronics, and DIY enthusiasts wanting to assemble their own Tesla coil.

📏 Compact Size Once Assembled: 6 × 6 × 16 Inch, ideal for experimentation and display.

An Educational Kit to Understand Electromagnetism

This Tesla Coil Spark Gap Kit allows for a hands-on discovery of high-voltage plasma, wireless energy transmission, and electric arcs in the air.

It targets the curious, makers, and science lovers looking to go beyond a simple decorative object, with a hands-on and educational approach.

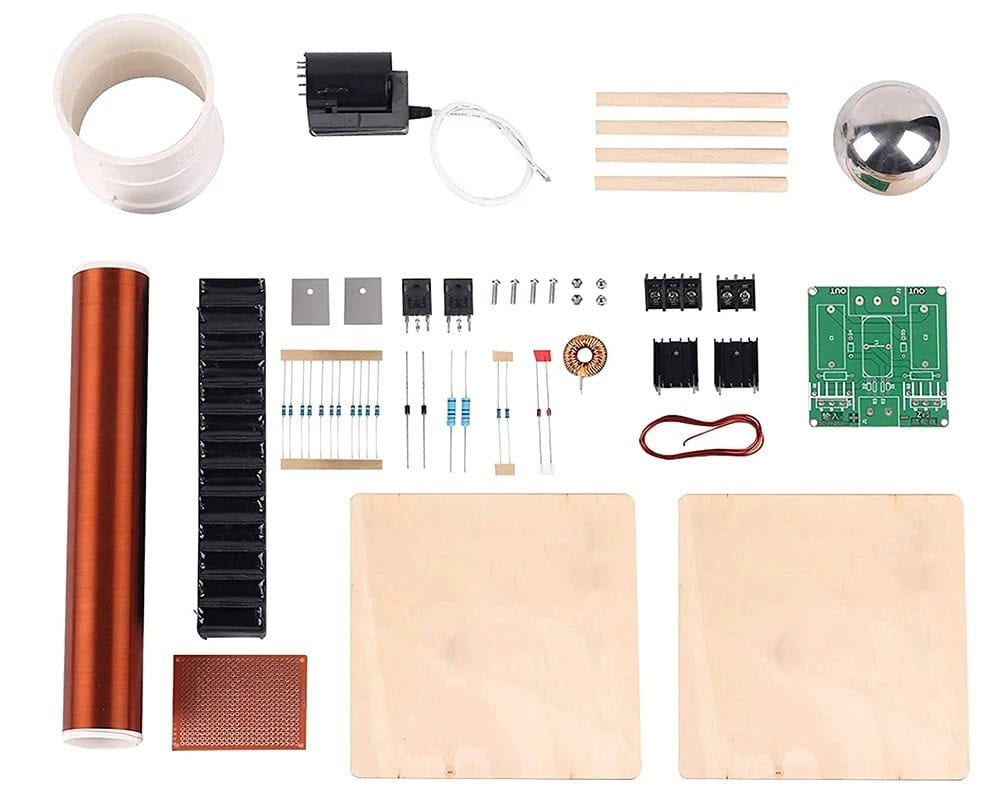

DIY Assembly: Skills and Materials Required

This product is a self-assembly kit. Before purchasing, it is important to note that:

• Basic soldering skills are necessary (soldering of the circuit board and wires).
• Soldering iron, solder (preferably medium thickness), and hot glue are not included.
• Power supply not provided. A stable and sufficient power source is essential to generate the arc.
• Imprecise soldering may prevent the formation of the electric arc.

👉 It is strongly recommended to carefully read the installation manual before starting assembly.

Safety and Usage Precautions

Experiments involving electricity require special attention:

• The secondary coil must be properly grounded before powering on.
• Do not touch the product while it is in operation.
• Always cut off power before any handling.
• Avoid short circuits and respect the polarity of components.
• Wearing gloves or antistatic wristbands is recommended during assembly.

⚠️ This kit is intended for informed users and is not suitable for children without supervision.

Technical Specifications

• Operating Voltage: DC 12V to 36V
• Power: 60W to 80W
• Arc Length: approximately 4 Inch
• Operating Temperature: -40°F to +185°F
• Humidity Tolerance: 5% to 95% RH
• Dimensions (Assembled): 6 × 6 × 16 Inch

For Further Exploration

📄 View the PDF manual
